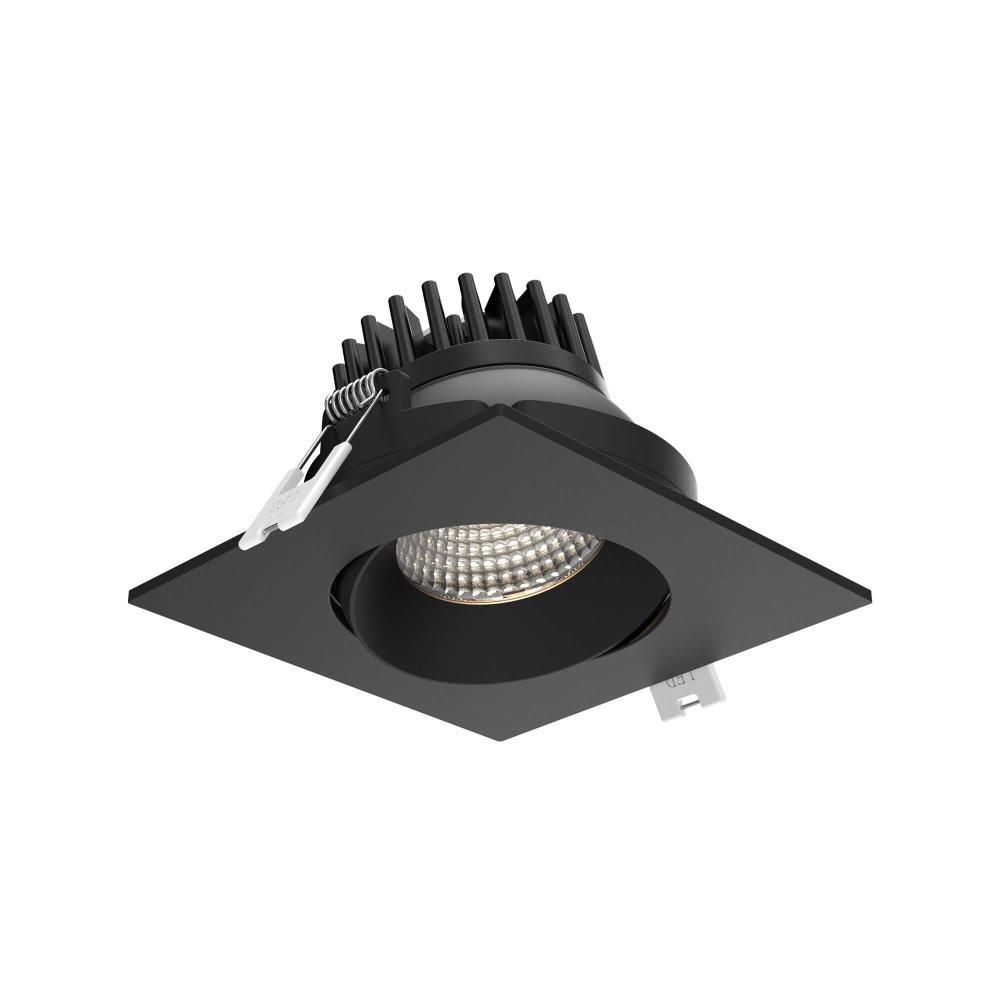

3.5" Gimbal recessed Square 5CCT
Image may not reflect selected features
/vendors/776/large/gbr35sq-cc-bk.jpg
additional image
additional image
3.5" Gimbal recessed Square 5CCT (6Y8VY)
Our Recessed family has grown with a new range of adjustable downlights. The effortless design and high functionality of these fixtures are sure to make a welcome addition in any room.
Downloads
Product Specification
Item #
6Y8VY
Dimensions
Height: 2.67"
Width: 4.25"
Length: 4.25"
Additional product details
Category
Recessed Ltg.
Subcategory
Other Recessed Ltg.
Finish
Black
Option
Title 24 , Outdoor , Wet Rated , Prop 65
Category
Recessed
Subcategory
Directional
Finish
Black
Option
Outdoor , Prop 65 , Title 24
Family
Revolve
Voltage
120 V
Number of Bulbs
1 Bulbs
Bulb Dimmable
Yes
Bulb Hours
50000
Kelvin
2700, 3000, 3500, 4000, 5000
Material
Aluminum
Ship Carton Height
4.65
Ship Carton Length
5.5
Ship Carton Width
4.65
Ship Weight
1.5
Warranty
5 Years Limited
Weight
1.2
Air-Tight (ASTM E283--4)
Yes
Beam Angle
40
Bulb CRI
90
Country of Origin
China
Delivered Lumens
860
Dimmer Type
Triac / ELV
Energy Star
No
IC Certification
Yes
Indoor
Yes
IP Rating
IP44
Lens Material
Plastic
Location Rating
Wet Rated
Max Wattage
12 W
Maximum Working Temperature
45°C
Minimum Working Temperature
-20°C
Outdoor
Yes
Prop 65
Yes
Safety Rating
ETL Approved
Shipping Master Height
14.75
Shipping Master Length
19.25
Shipping Master Quantity
24
Shipping Master Weight
28
Shipping Master Width
11.75
Title 24
Yes
Wiring
Hardwired


Other Details:
  • 30° tilting, 360° rotation
  • 40° beam angle
  • IC certification (suitable for direct contact with insulation)
  • Suitable for wet locations
  • Switch-selectable CCT: 2700 K/3000 K/3500 K/4000 K/5000 K in canopy
Finish
Additional options that would change other selections
Call for Price
Qty:
BASE PRICE:
$
130
26
/ / 1
($130.26 / 1)
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Availability:
  • Manufacturer availability unknown.
